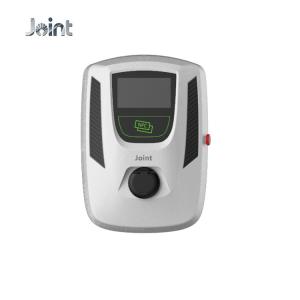

Level 2 240Vac 7KW Wall Mounted Ev Charging Station

Name: Level 2 240Vac 7KW Wall Mounted Ev Charging Station
Brand: Joint
Price: 250 USD

Brand Name : Joint

Model Number : JNT-EVC10 Series

Certification : ETL, CE

Place of Origin : China

MOQ : 1

Price : USD 250-450/SET

Payment Terms : T/T, L/C, Western Union

Supply Ability : 3000 pcs/Month

Delivery Time : 28 Days

Packaging Details : Standard Package

Voltage : 200-240Vac

Maximum Current : 32A

Frequency : 50Hz

IP Rating : IP65

Working Temperature : -22˚F~+122˚F(-30˚C~+50˚C)

LED Indicator : Green/Blue/Red

LCD Display : 24.3lb-94.8lb

RFID Reader : Optional

Contact Now

Wall mounted 7KW Level 2 AC EV Charger Station

The electric vehicle generation has arrived. Is your company ready for it? With the JNT-EVC10 Series Charging Station, you’ll have the perfect plug-and-play solution that’s flexible to accommodate both on-site guests and your fleet of electric vehicles.

JNT-EVC10 electric vehicle charging stations are built network-ready for back-end management and come standard with RFID card readers for user identification. With a versatile ergonomic design, it can be mounted to a wall or pedestal while providing different charge current. JNT-EVC10 allows you to easily add electric vehicle charging as an added benefit to hospitality, offices, municipalities, and many other commercial properties.

Stylish enclosure integrates within existing architecture and is well-protected from outdoor environments.
Built network-ready (LAN, 4G, or Wi-Fi) to connect to third-party OCPP-compliant management software.
Wall or stand-alone pedestal mounting configurations that work within your circuit capacity to reduce installation costs.
Secure RFID authentication allows access to EV drivers.
Standard SAE J1772™ plug that is compatible with most all-electric and hybrid electric vehicles.

Features

1. Stylish durable design Up to 32A @ 400V Max. ouput power:22kw

2. Network connectivity OCPP 1.6J (2.0 compatible)

3. Type A+DC6mA

4. Waterproof LAN interface

5. IEC 62196-2 charging plug and 5m cable or socket

6. IK08, IP65 for indoor /outdoor

7. 4.3’’ LCD optional

8. 4G SIM card Emergency stop

Series

Model Name	EVC10-03C1C	EVC10-07C1C	EVC10-09C1C	EVC10-11C1C
Input Rating	200-240Vac
Frequency	60Hz
Input Current	16A	32A	40A	48A
Output Current	16A	32A	40A	48A
User Authentication	RFID (ISO 14443)
External	LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal	OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature	-22˚F~122˚F(-30˚C~50˚C)
Humidity	Max. 95% RH
Altitude	≦ 2000m
IP Level	IP65 for box
Dimension(WxDxH)	350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet	18ft charging cable(25ft charging cable optional)
CCID	CCID20
Charging Interface	SAEJ1772
Multiple Protection	Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Current leakage protection

Level 2 240Vac 7KW Wall Mounted Ev Charging Station
